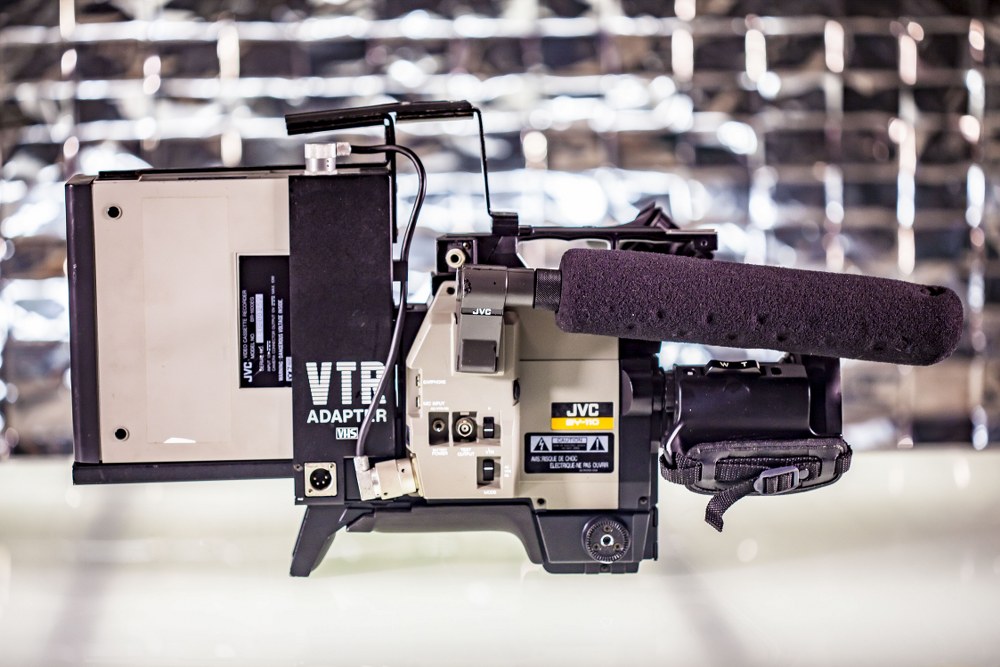

Vintage JVC BY-110 Videocamera VTR ADAPTER VHS BR-1600EG

Extremely compact, lightweight--8.2 lbs. with lens and 1

Vintage JVC BY-110 Videocamera VTR ADAPTER VHS BR-1600EG

Extremely compact, lightweight--8.2 lbs. with lens and 1" viewfinder.

Low power consumption--15.0 watts w/1" viewfinder.

f/1.4 prism optical system

3 newly designed 1/2" hi-voltage Saticon tubes.

Hi-resolution of 600 lines.

Excellent signal to noise ratio of 54dB

Genlock input (through AC power connector)

Auto-shift registration

Auto white/black balance

Auto beam control (ABC)

Auto black level circuit (ABL)

Servo iris control circuit w/auto iris close

Color bar circuit

+6dB/+12dB gain boost for low light

Built-in color temperature filter wheel

"Hot Shoe" viewfinder, lens, & optional microphone

Extended life memory backup battery

Videos

==================BY110 SPECIFICATIONS==================

Optical system : f/1.4 three tube RGB prism
system

Focusing/deflection system : Electrostatic focus/electro-
magnetic deflection

Pickup tubes : 1/2" Saticon* (x3)

Encoder : PAL (R-Y, B-Y)

Synchronizing system

Internal : Built-in SSG

External : Composite video or black burst
(via AC power adaptor or remote
control unit)

Lens : f/1.4 10X power zoom lens,
minimum object distance 1 m
(3.25 feet), with macro position

Sensitivity : f/2.8 at 2000 lux (186 fc)

Minimum illumination : f/1.4, 65 lux (70% video level)
(+12 dB switch ON)

S/N : 54dB (Contour correction OFF,
Gamma 1, Bandwidth 4.2 MHz)

Horizontal resolution : 600 lines (G ch center)

Registration

Zone 1 : Within 0.1% (circle 80% of
picture height)

Zone 2 : Within 0.4% (circle of picture
width)

Zone 3 : Within 0.8% (area outside Zone 2)

Geometric distortion : Within 2%

Input signals

Return video signal : VBS, 1.0 Vp-p, 75 ohms

Genlock signal : Composite video (VBS, 1.0 Vp-p,
75 ohms) or black burst (BB, 0.43
Vp-p, 75 ohms)

Microphone : -52dBm, 600 ohm unbalanced

Output signals

Composite video signal : 1.0 Vp-p, 75 ohm (14p connector)

Test signal : R, G, B, R-G, B-G, ENC

Audio signal : -20 dB unbalanced

Audio monitor signal : From video recorder used

VCR control signal : Contact or 4V supply
(switchable)

Contour Correction

Horizontal : Dual-edged

Vertical : 1H, single-edged

Optical filters : Closed, 3200K, 5600K,
5600K+25%ND

Gain Boost : 0 dB, +6 dB, +12 dB

Power requirement : +12V DC (10.5--15V), 1.05 A

Ambient temperature : -5 to +45 C (23 to 113 F)

Weight : 3.7 kg (8.2 lbs) including 1"
viewfinder

1" Viewfinder VF-110U
---------------------

CRT : 25 mm (1 inch) diagonal

Resolution : 350 TV lines

Provided circuits : Front tally lamp, video rec/
camera battery warning, record/
tally indication, video level
display.

Diopter : provided

Power requirement : 12V DC, 300 mA

Ambient temperature : -20 to +50 C (-4 to 122 F)

Weight : 400 g

Dimensions : 193(W) x 164(H) x 57(D) mm
(7-5/8" x 6-1/2" x 2-1/4")

4" Viewfinder VF-400
--------------------

CRT : (4 inches) diagonal

Resolution : more than 500 TV lines

Provided circuits : Tally lamps, peaking control

Pan/tilt mechanisms : Provided

Power requirement : 12V DC

Ambient Temperature : -20 to 50 C (-4 to 122 F)

AC Power Adaptor AA-C11U
------------------------

Power input : 120 V AC, 50/60 Hz

Output

Camera mode : +12V DC, 2.2 A

Charge mode : +12V to +16V DC, 2.2 A

Power consumption : 60 W

Compatible battery pack : DC-C11U

Ambient temperature

Camera mode : -20 to +50 C (-4 to 122 F)

Charge mode : +10 to +35 C (+50 to +95 F)

Charge indication : QUICK/TRICKLE

Charge time : Approx. 90 min. (quick charge)

Weight : 1.85 kg (4.1 lbs)

Battery Pack DC-C11U
--------------------

Type : Ni-Cad battery

Output : 12 V DC, 2.2 Ah

Overcharge sensor : Built-in

Remote Control Unit RS-110U
---------------------------

Output signals

Composite video signals : 1.0 Vp-p, 75 ohms, x 2

R/G/B signals : 0.7 Vp-p, 75 ohms, x 1 each
(by switching)

Intercom signal : 2-wire system, line -20 dBm,
600 ohm balanced

Input signals

Genlock signal : VBS 1.0 Vp-p, 75 ohm (loop-
thru output) or BB 0.43 Vp-p,
75 ohms (loop-through output)

AUX signal : VBS or VC, 1.0 Vp-p, 75 ohms,
(loop-thru output)

Intercom signal : 2-wire system, line -20 dBm,
600 ohm balanced

Tally signal : Make-contact or power supply
(5 to 24 V DC, or 6 V AC)

Power requirement : 120 V AC, 50/60 Hz

Ambient temperature : -10 to +45 C (+14 to 113 F)

Microphone M-K50U
-----------------

Type : Electret condenser

Sensitivity : -52 dB

S/N ratio : 50 dB

Frequency response : 70 to 16000 Hz

Output impedence : 600 ohms, balanced

Power requirement : 9 V DC (provided from camera)

Ambient temperature : -5 to +45 C (+23 to +113 F)

Weight : 270 g (0.6 lbs)

Design and specifications subject to change without notice.
