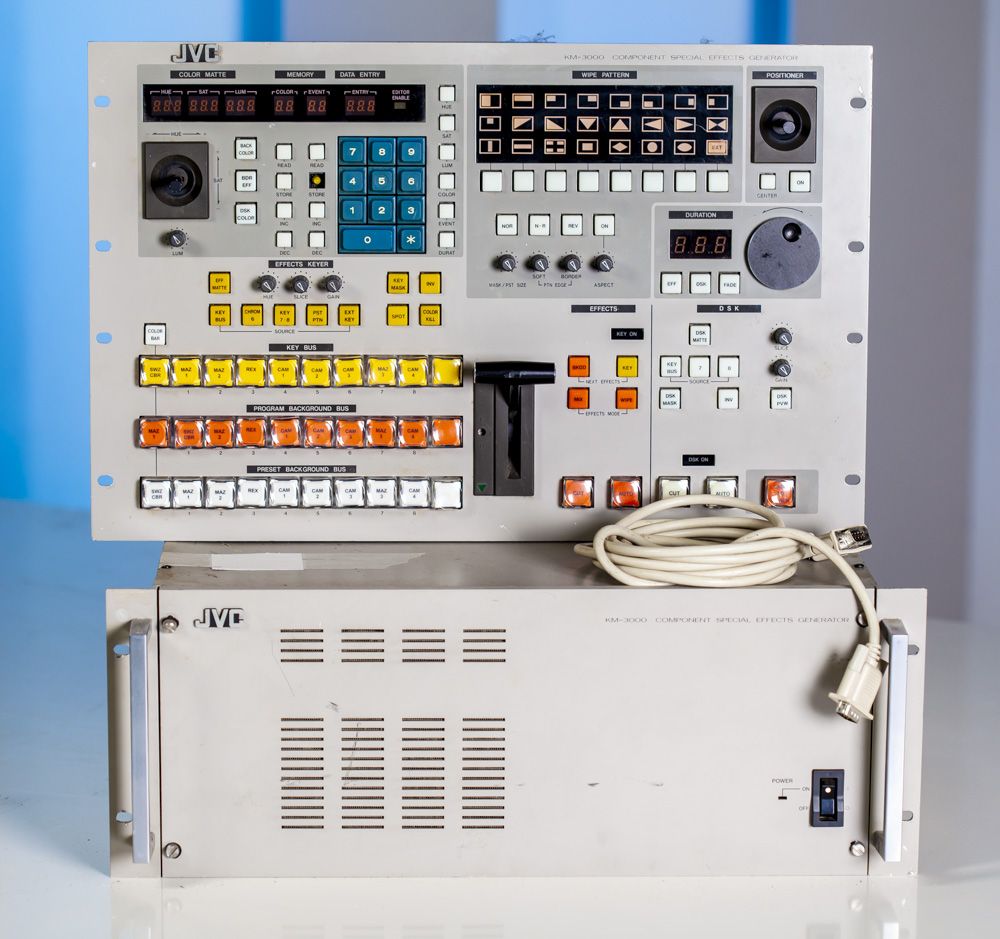

JVC KM-3000U Component Special-Effects Generator.
The KM-3000U Component Special-Effects Generator from JVC is a video processor designed to provide special-effects and processing features for component video signals. It can function as an 8-input component mixer, or inputs six through eight can also be used with RGB signals. It will output in (3) different signal formats: component, composite, and Y/C video.
Other features include a soft linear chroma key, an external key, and a luminance key. Automatic and manual transitions are both available. Special effects include downstream keys and fades, which can also be either automatic or manual. Transition time in automatic mode can be set between 0 and 999 frames with a rotary dial or 10-digit key pad. Moreover, (23) wipe patterns are included with the unit.
Color matte generation is offered for borders, background colors, and the downstream key. A built-in data memory can record up to (16) events and (24) colors. By leaving both the background and key switches on and actuating one extra effect, it is possible to mix 3-mode composite effects. It will interface with most RS-422 and GPI VCR editing controls.
Component Processing & Special Effects
Use this unit to process, mix, and add special effects to your component video signals.
Editing Features
Keying controls, automatic and manual transitions, and wipe patterns are just a few of the many standard features included with this unit.
Construction Metal
Finish Beige
Inputs VIDEO INPUT
Program
(8) Y: 1.0Vp-p, 75 Ohms; R-Y/B-Y: 0.7Vp-p (100% color bar), 75 Ohms; R-Y/B-Y: 0.486Vp-p (75% color bar) with 7.5% setup) 75 Ohms
(2) Key VB: 0.7Vp-p, 75 Ohms
(1) external key VB: 0.7Vp-p, 75 Ohms or High
(1) external wipe VB: 0.7Vp-p, 75 Ohms or High
Genlock input
(1) B.b. VBS: 0.43 Vp-p, 75 Ohms or higher
Outputs VIDEO OUTPUT
Program
(2) component Y: 1.0 Vp-p, 75 Ohms; R-Y/B-Y: 0.7Vp-p (100% color bar), 75 Ohms 0.486 Vp-p (75% color bar with 7.5% setup). 75 Ohms
(1) composite VBS: 1.0Vp-p, 75 Ohms
(1) Y/C output Y = 1.0Vp-p, 75 Ohms; C = 0.286Vp-p, 75 Ohms (burst level)
Preview
(1) component Y: 1.0 Vp-p, 75 Ohms; R-Y/B-Y: 0.7Vp-p (100% color bar), 75 Ohms 0.486 Vp-p (75% color bar with 7.5% setup), 75 Ohms
(1) composite VBS: 1.0Vp-p, 75 Ohms
(1) key hole BD: 0.7Vp-p, 75 Ohms
GENLOCK OUTPUT
(1) B.b. VBS: 0.43Vp-p, 75 Ohms or High Sync output
(3) B.B. VBS: 0.43Vp-p, 75 Ohms
FADER OUTPUT
(1) Fader DC voltage, 0 to 5VDC
Power 120 VAC, 50/60Hz, 95W (main unit), 28W (control unit)
Dimensions Control unit: 5-15/16 x 19 x 12-1/4" (150.5 x 482 x 310mm)
Main unit: 7-1/8 x 19 x 16-3/16" (180.5 x 482 x 410mm)
Weight Control unit: 14.4 lbs (6.5kg)
Main unit: 32 lbs (14.5kg)
